大型機具電纜
華新麗華生產大型機具電纜，如天車專用電纜、垂直上下蓄纜筐電纜及港口門型吊車及岸橋專用電纜。其特性符合各種不同大型機具使用上之需求，耐扭轉、耐彎曲、耐磨耗，並具備良好的動態拉力與耐衝擊特性。導體部份，為柔軟的細導體結構，耐反覆彎曲運動。材料符合歐規要求，被覆使用機械性能及耐磨性具佳的5GM5材料。達到更小、更輕、更耐用的電纜特性。

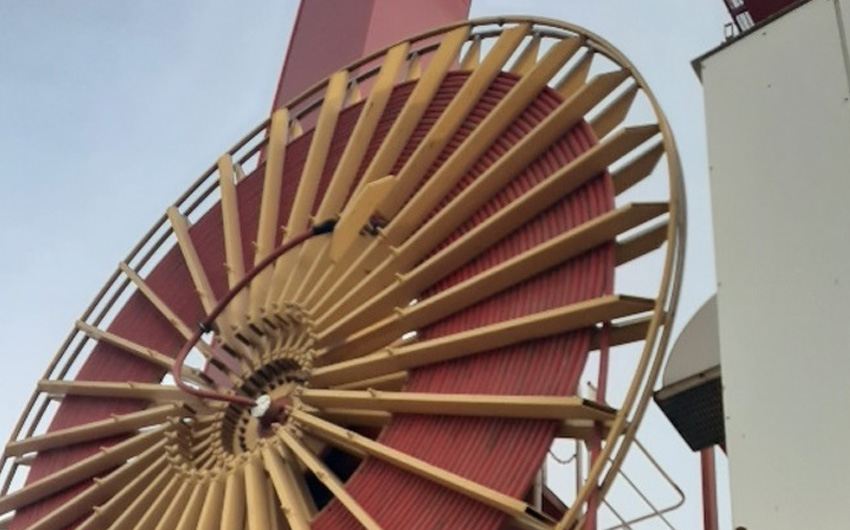

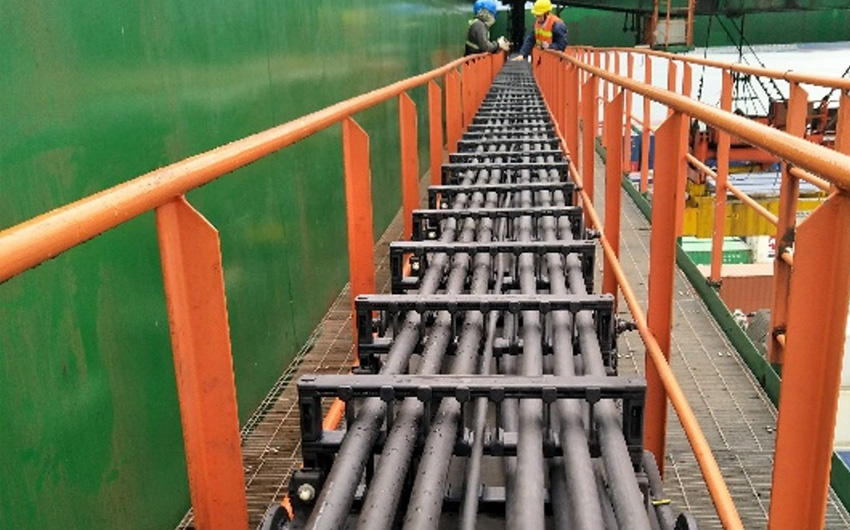

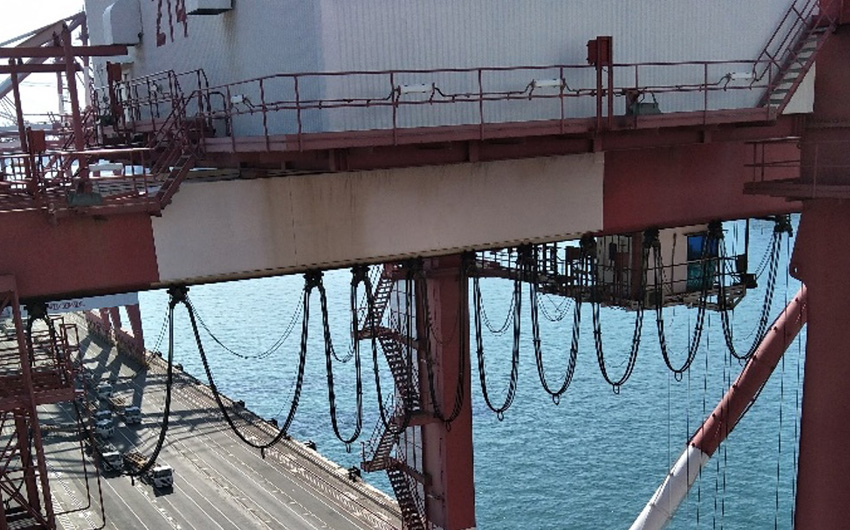

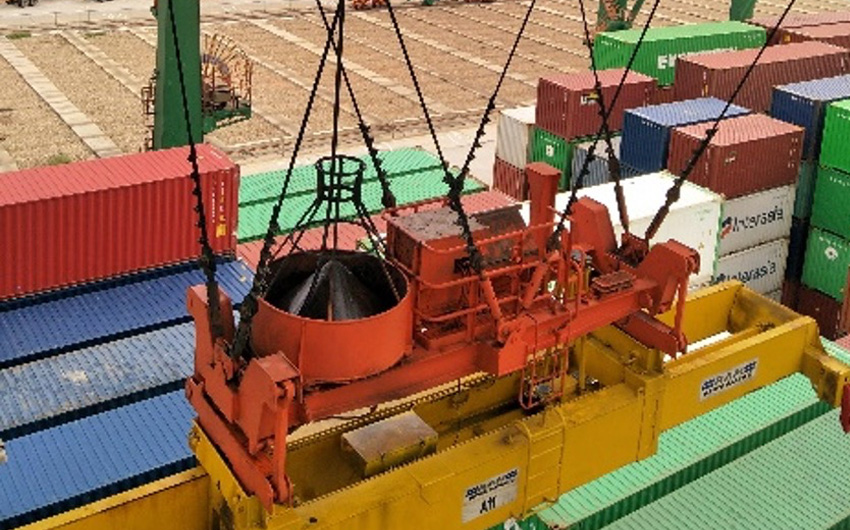

產品製程與應用
產品規格
| No. of Chores | Conductor | Insulation Thckness (mm) | Sheath Thickness (mm) | Approx. Overall Diameter (mm) | Approx. Mass (kg/km) | Max. Conductor Resistance 20℃ (Ω/km) | Min. Insulation Resistance 20℃ (MΩ-km) | |
|---|---|---|---|---|---|---|---|---|
| Size (mm2) | Approx. Diameter (mm) | |||||||
| 20 | 0.75 | 1.1 | 0.8 | 2.3 | 21.0 | 505 | 26.6 | 500 |
| 1.25 | 1.5 | 0.8 | 2.5 | 23.0 | 380 | 16.0 | 500 | |
| 2 | 1.8 | 0.8 | 2.6 | 25.0 | 870 | 16.0 | 500 | |
| 3.5 | 2.5 | 0.8 | 2.8 | 29.0 | 1,340 | 5.54 | 400 | |
| 24 | 0.75 | 1.1 | 0.8 | 2.4 | 22.0 | 600 | 26.6 | 500 |
| 1.25 | 1.5 | 0.8 | 2.6 | 25.0 | 810 | 16.0 | 500 | |
| 2 | 1.8 | 0.8 | 2.7 | 27.0 | 1,050 | 10.2 | 500 | |
| 3.5 | 2.5 | 0.8 | 3.0 | 32.0 | 1,610 | 5.54 | 400 | |
| 30 | 0.75 | 1.1 | 0.8 | 2.5 | 24.0 | 715 | 26.6 | 500 |
| 1.25 | 1.5 | 0.8 | 2.7 | 27.0 | 965 | 16.0 | 500 | |
| 2 | 1.8 | 0.8 | 2.8 | 29.0 | 1,250 | 10.2 | 500 | |
| 3.5 | 2.5 | 0.8 | 3.1 | 34.0 | 1,930 | 5.54 | 400 | |
| Number of cores and nominal | Power-/Earth conductor diameter (mm) | Overall diameter of cable Min value (mm) | Overall diameter of cable Max value (mm) | Approx. Net weight for 1000m | aximum permissible tensile force (N) |
|---|---|---|---|---|---|
| 0.6/1kV (N)TSWOEU=[N]SHTOEU | |||||
| 3X70+3X35/3 | 12.0/5.0 | 39.7 | 42.7 | 3920 | 6300 |
| 3X95+3X50/3 | 14.0/6.0 | 44.3 | 47.3 | 5020 | 8550 |
| 3X230+3X70/3 | 15.8/7.2 | 51.0 | 55.0 | 6630 | 10800 |
| 3X150+3X70/3 | 17.5/7.2 | 53.9 | 57.9 | 7690 | 13500 |
| 1.8/3kV (N)TSCGEWOEU | |||||
| 3X25+3X25/3 | 7.1/4.2 | 40.4 | 43.4 | 2680 | 1500 |
| 3X35+3X25/3 | 8.3/4.2 | 43.0 | 46.0 | 3150 | 2100 |
| 3X50+3X25/3 | 9.9/4.2 | 46.4 | 49.4 | 3840 | 3000 |
| 3X70+3X25/3 | 11.8/5.0 | 45.9 | 48.9 | 4240 | 4200 |
| 3.6/6kV (N)TSCGEWOEU | |||||
| 3X25+3X25/3 | 7.1/4.2 | 36.1 | 39.1 | 2,190 | 1,500 |
| 3X35+3X25/3 | 8.3/4.2 | 39.6 | 42.6 | 2,710 | 2,100 |
| 3X50+3X25/3 | 9.9/4.2 | 42.4 | 45.4 | 3,360 | 3,000 |
| 3X70+3X35/3 | 11.8/5.0 | 46.4 | 49.6 | 4,290 | 4,200 |
| 3X95+3X50/3 | 13.8/5.9 | 51.4 | 55.5 | 5,520 | 5,700 |
| 3X120+3X70/3 | 15.4/7.0 | 55.0 | 59.0 | 6,680 | 7,200 |
| 6/10kV (N)TSCGEWOEU | |||||
| 3X25+3X25/3 | 7.1/4.2 | 37.8 | 40.8 | 2,410 | 1,500 |
| 3X35+3X25/3 | 8.3/4.2 | 40.9 | 43.9 | 2,880 | 2,100 |
| 3X35+3X35/3 | 8.3/5.0 | 40.9 | 43.9 | 2,880 | 2,100 |
| 3X50+3X25/3 | 9.9/4.2 | 43.7 | 46.7 | 3,480 | 3,000 |
| 3X70+3X35/3 | 11.8/5.0 | 47.7 | 50.7 | 4,570 | 4,200 |
| 3X95+3X50/3 | 13.8/5.9 | 52.8 | 56.8 | 5,710 | 5,700 |
| 3X120+3X70/3 | 15.4/7.0 | 56.2 | 60.2 | 6,830 | 7,200 |
