Cold Finished Bar

WalsinLihwa stainless steel cold finished are made by cold drawing of wire rods or hot-rolled pickled bars and include round bars and bars of various shapes. WalsinLihwa produces a variety of cold finished bars at its Yenshui and Jiangyin plants; such cold finished bars feature high quality, stability, outstanding straightness, high precision, and ease in cutting. In addition to round bars in general, the Yenshui plant can supply centerless ground bars, square and hexagon cold finished bars, and is a world-leading supplier of stainless steel cold finished bars.

Peeled Bar
Peeled bars are made by turning and feature high stability, an outstanding material strength and homogeneous structure, as well as precise straightness and sizes. The sizes of round peeled bars produced by the Yenshui plant range from 16 to 125 mm and those of peeled bars produced by the Yantai and Jiangyin plants range from 15 to 350 mm.
Cold Drawn Bar
Cold drawn bars have the outstanding features of accuracy, straightness, surface, cleanness and safety. Different kinds of soft/hard materials can be tailor-made according to customers’ requirement. The sizes of cold drawn bars in Yenshui are 2 – 70 mm, in Jiangyin are 2 – 128 mm.
Cold Drawn Shaped Bar
Cold-drawn shaped bars include square and hexagon bars. The sizes of hexagon bars and square bars produced by the Yenshui plant range from 4.76 to 63.5 mm and 4.76 to 40 mm respectively. The Jiangyin plant produces square and hexagon bars as well as other shaped bars. The sizes of its square bars and hexagon bars range from 12.7 to 76.2 mm, while customized development of other shaped bars is also provided by the plant.

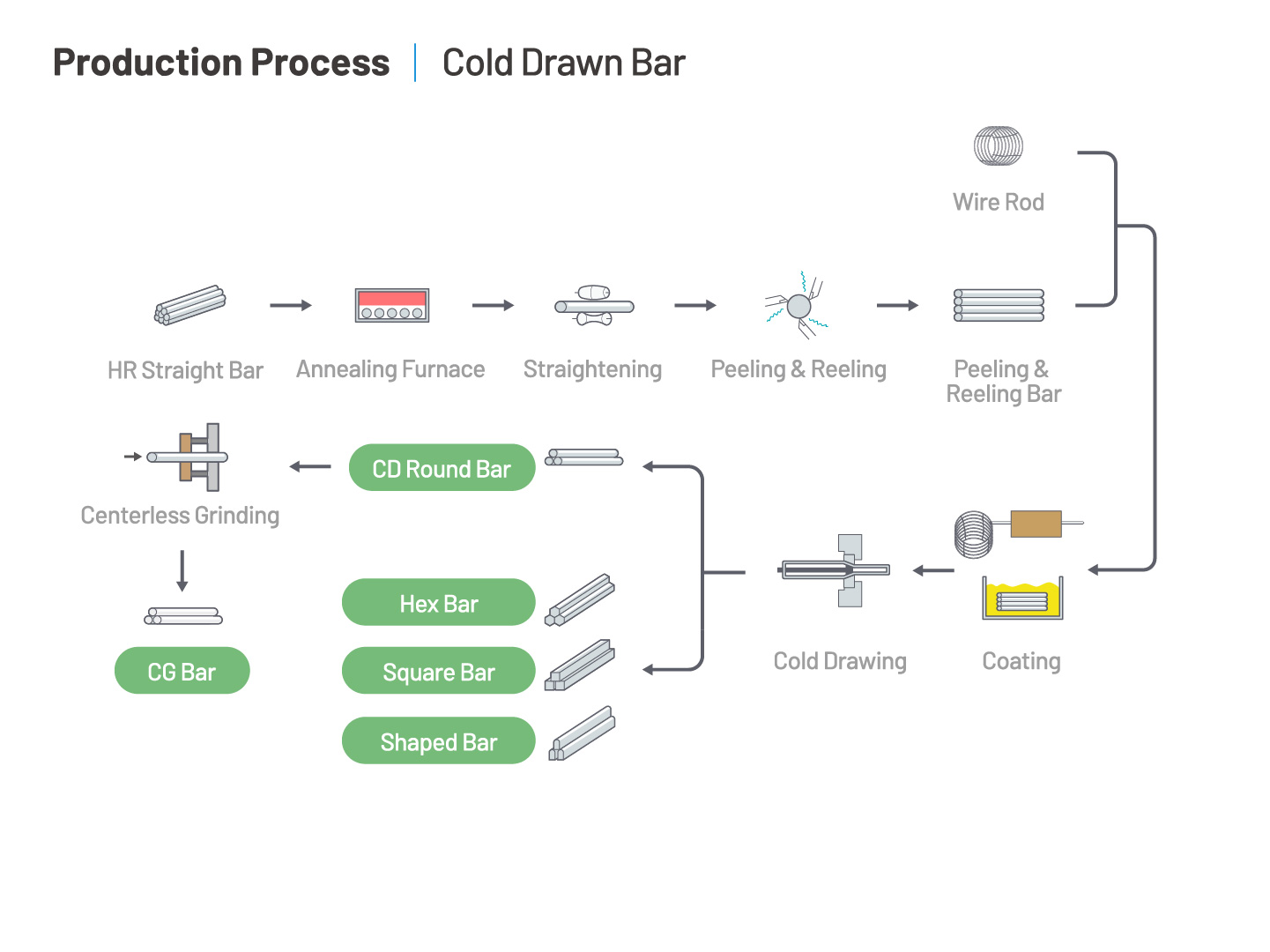

Manufacturing Process and Applications

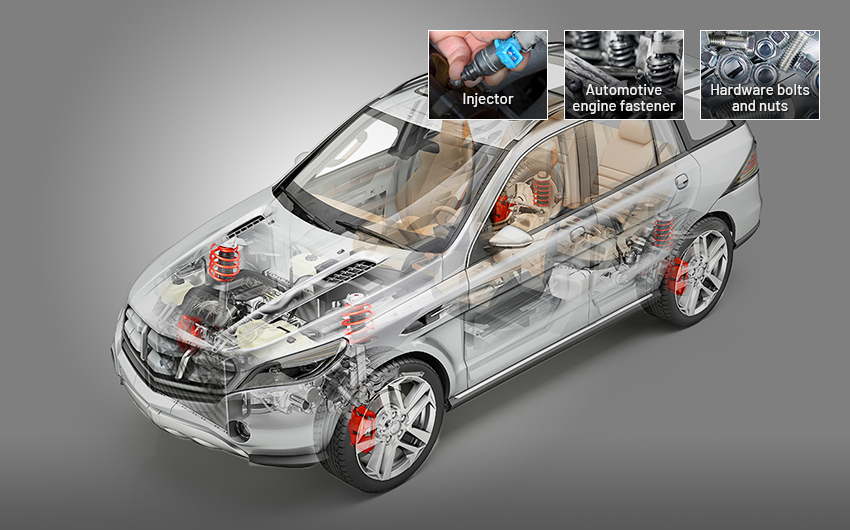

Transportation

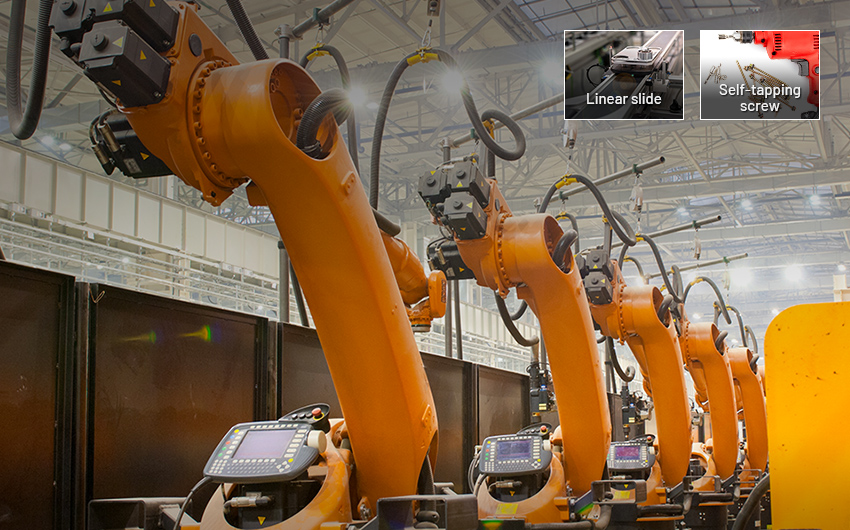

Machinery

Vessel
Marine hardware

Energy

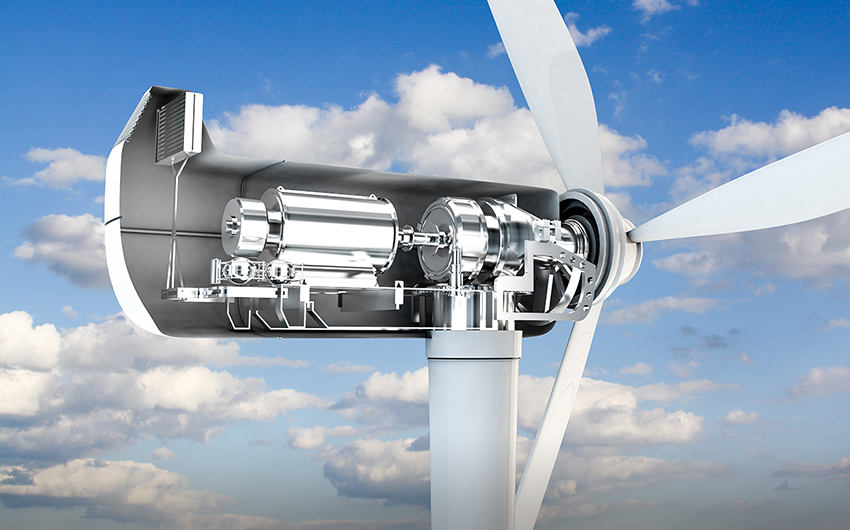

Wind turbine shaft

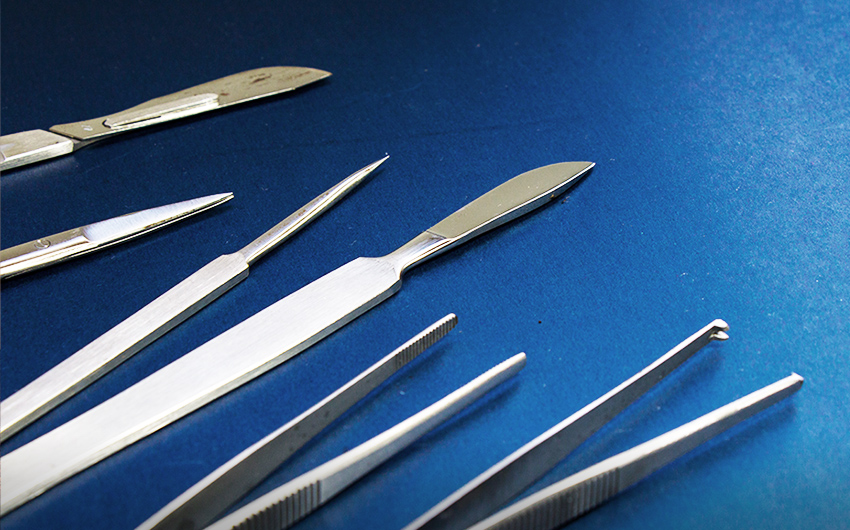

Medical Device
Scalpel

Instrument

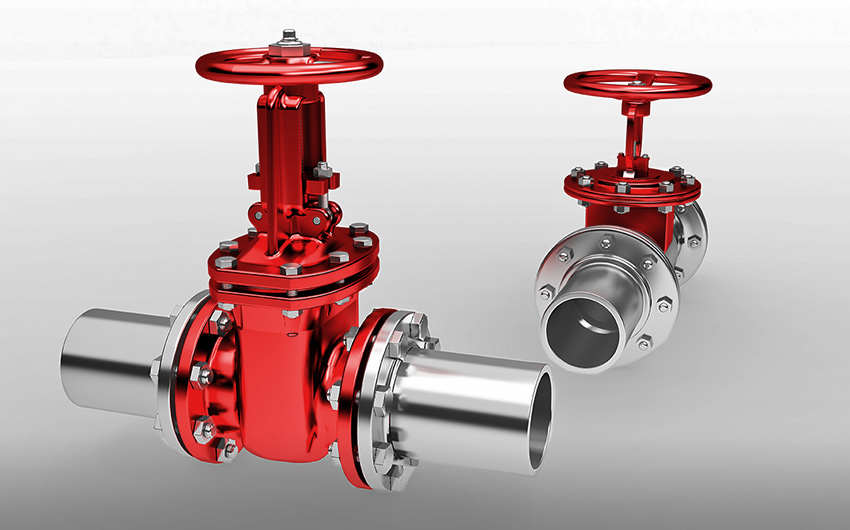

Valve shaft

Specifications

Yenshui Plant – Common Use
Grades of Steel	304/304L (1.4307)、316/316L (1.4404)、303 (1.4305)、410 (1.4006)、416 (1.4005)、420 (1.4021.) / 420J2 (1.4028)、430 (1.4016) / 430F (1.4104)、431 (1.4057)、316Ti (1.4571)、310S (1.4845)、630 (1.4542)、XM-19 (1.3964)
Product	Peeled bar, Cold Drawn bar, Centerless Ground bar
Shape	Round Bar, Hex Bar, Square Bar
Length	2.5 ~ 6.5M
Dimension	Round 2 ~ 120mm Hexagon 4.76 ~ 63.5mm Square 4.76 ~ 40mm

Jiangyin Plant – Common use
Grades of Steel	303 (1.4305)、303CU、304/304L (1.4307)、316/316L (1.4404)、316Ti (1.4571)、310S(1.4845)、314(1.4841)、410 (1.4006)、416 (1.4005)、420(1.4021.)、420J2 (1.4028)、430 (1.4016)、430F(1.4105)、431(1.4057)、41501(1.4418)、310S (1.4845)、630 (1.4542)、XM-19 (1.3964)
Product	Peeled bar, Cold Drawn bar, Centerless Ground bar
Shape	Round Bar, Hex Bar, Square Bar, Shaped Bar
Length	2 ~ 6.5M
Dimension	Round 4.5 ~ 127mm Hexagon 4.76 ~ 76.2mm Square 4.76 ~ 76.2mm
