Fire Resistant Cable / Heat Resistant Cable
According to the Standard for Installation of Fire Safety Equipments Based on Use and Occupancy, wiring of the fire safety equipment emergency power supply system shall be fire-resistant or heat-resistant.
Meeting the「Approval Criteria for Heat Resistant Wires and Cables」and the 「Approval Criteria for Fire Resistant Cables」, Walsin Lihwa’s fire-resistant wires and cables have gain relevant accreditations. For a certain period of time, the products can maintain normal operation of the fire safety equipment, which use emergency power supply in case of fires, to help protect lives and property.
- Heat Resistant Cable
Heat-resistant wires and cables for signals, indicator lights, and control circuits of emergency power supply of fire safety equipment under 600V. - Flame Resistant Cable
Flame-resistant cables for power supply, control circuits, alarms, monitoring, and communications of emergency power supply of fire safety equipment under 600V.

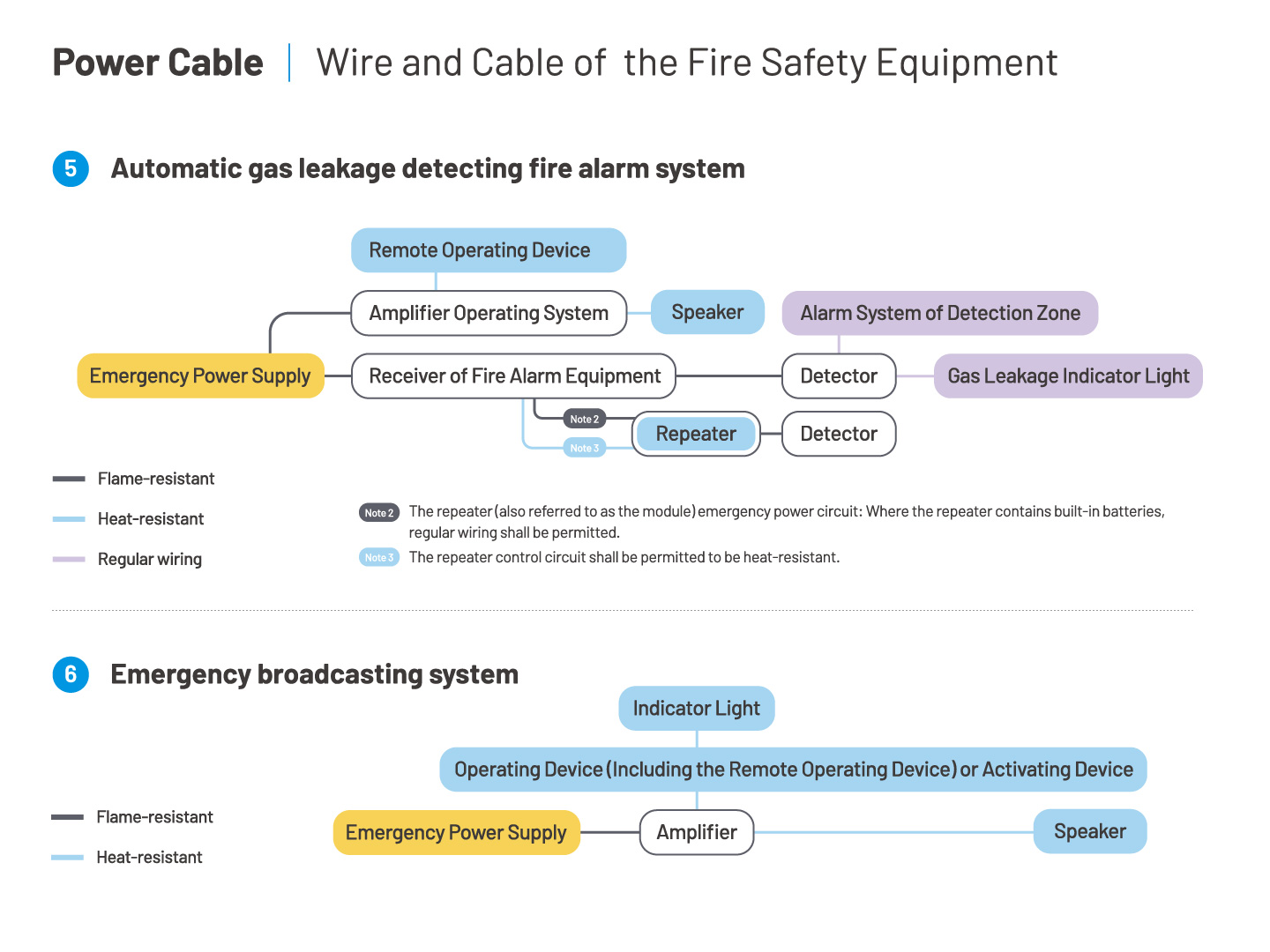

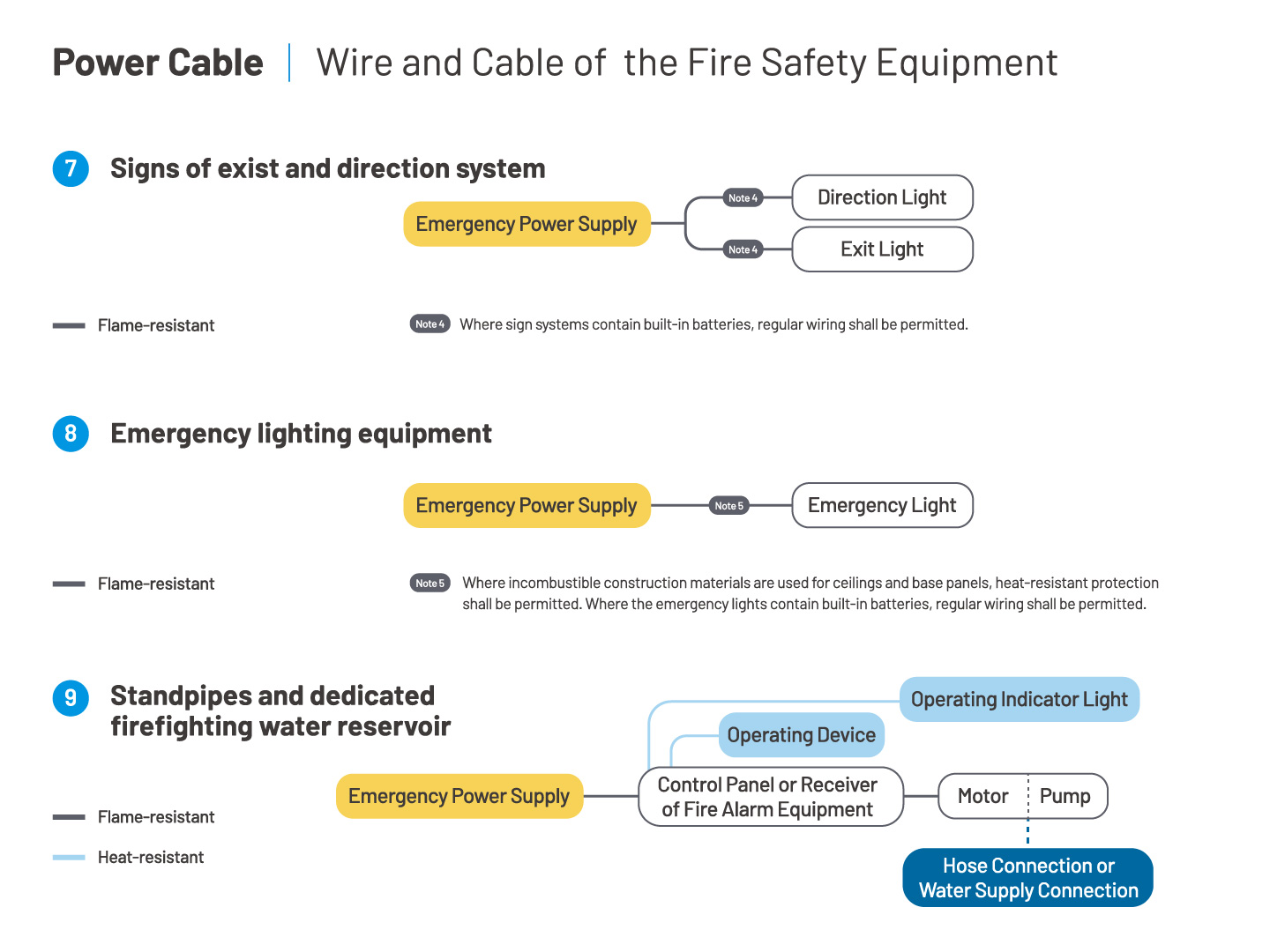

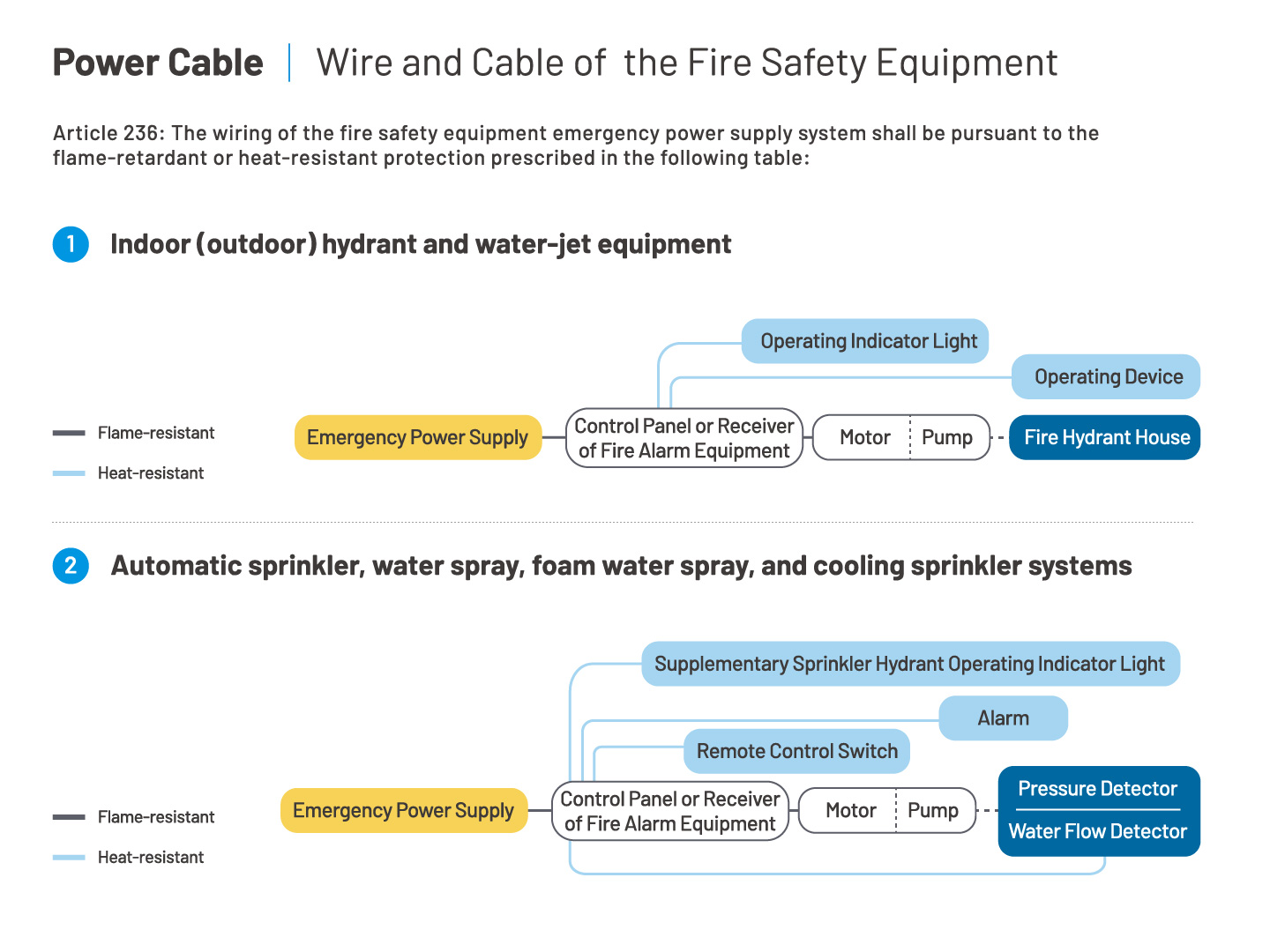

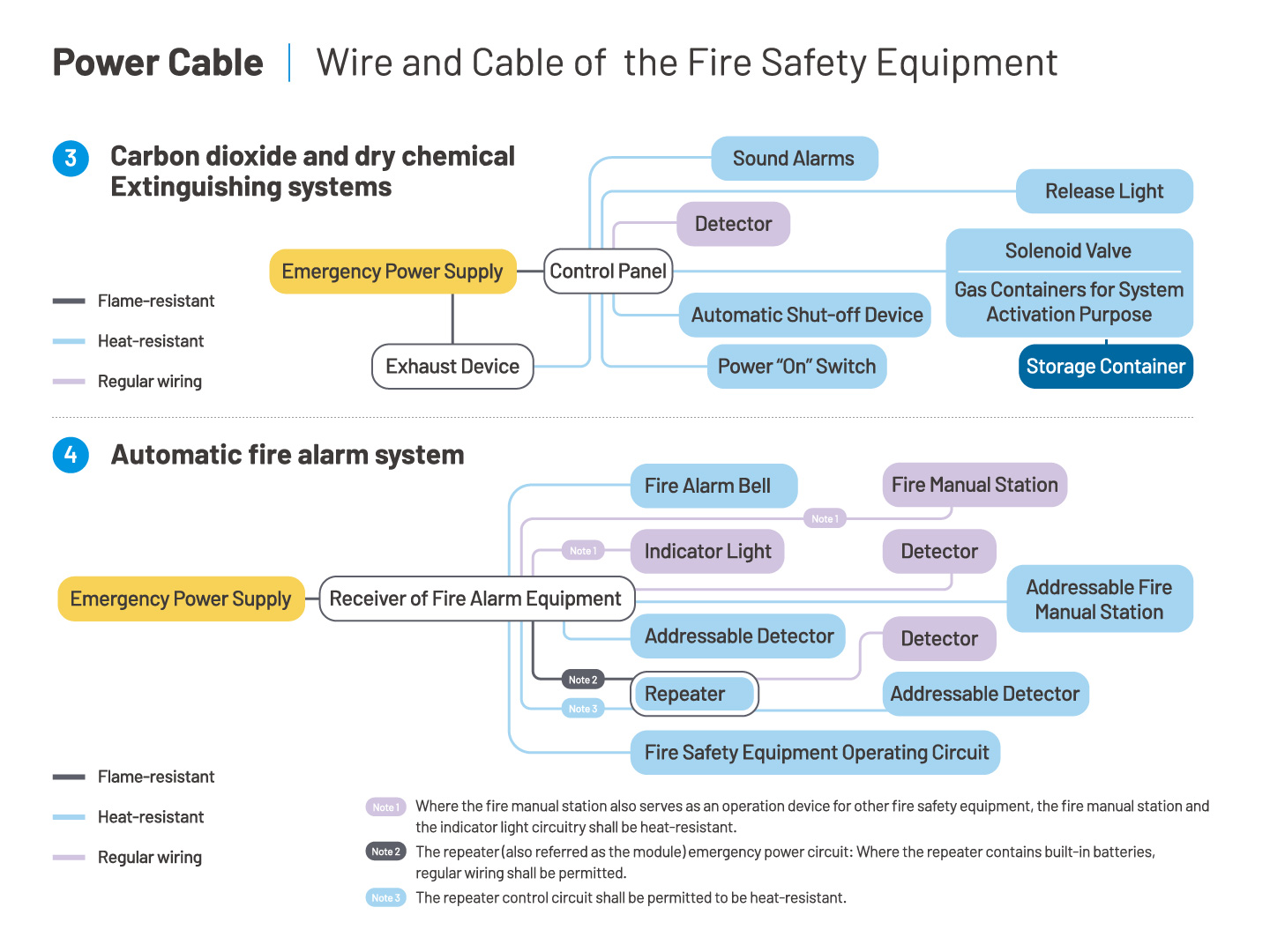

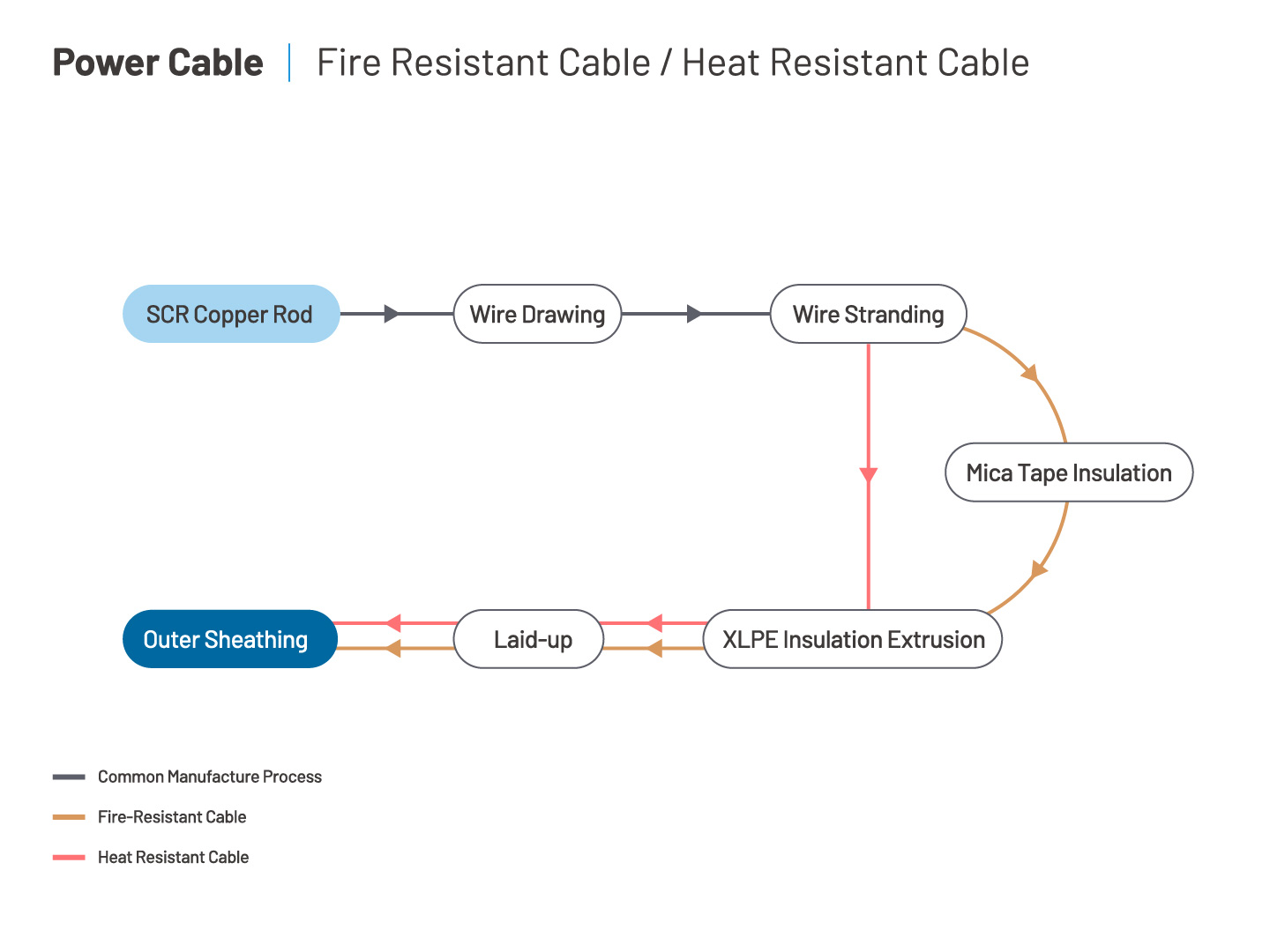

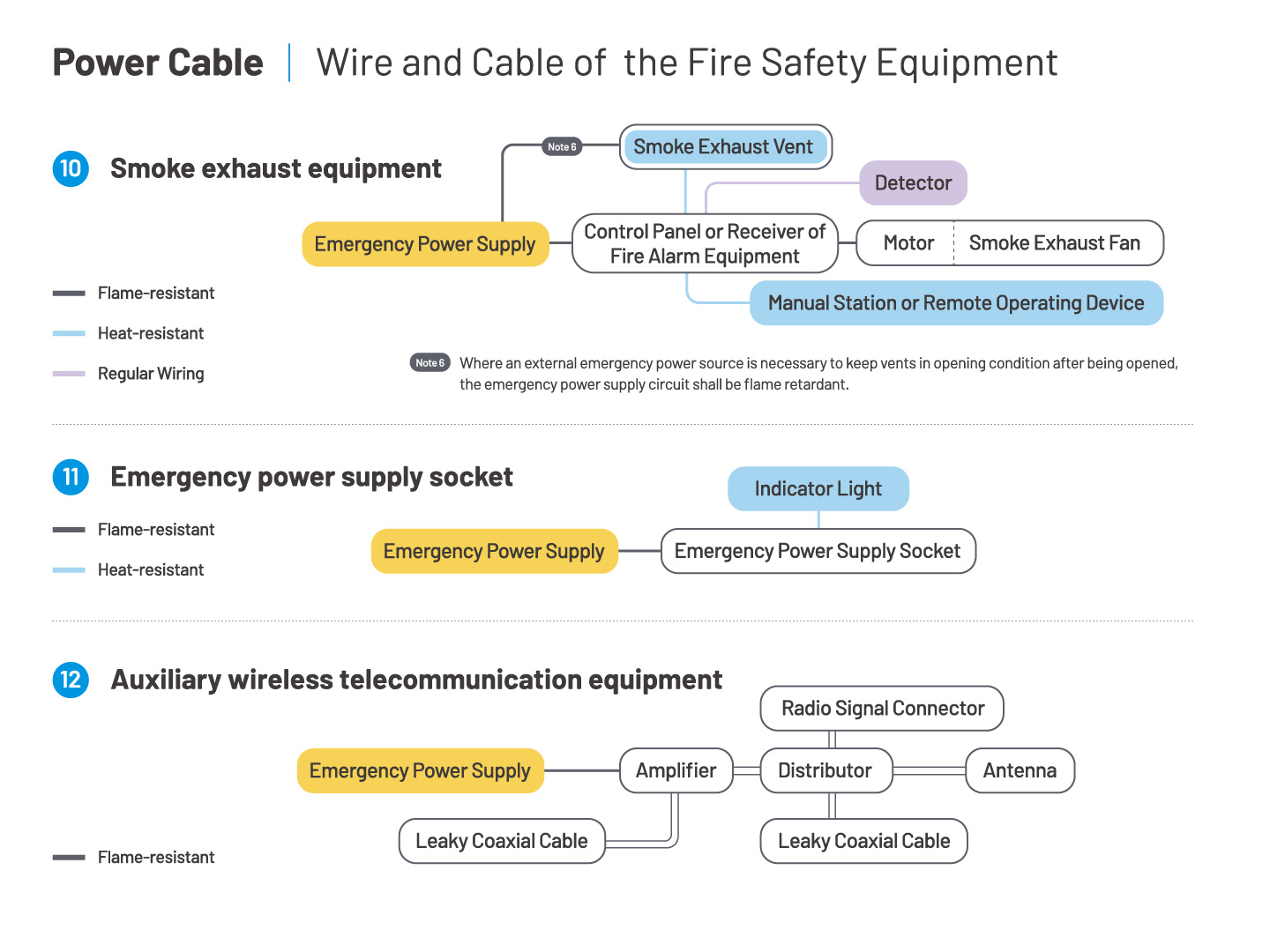

Manufacture Process and Applications
Specifications
Hsinchuang Plant:
| Product | Voltage | Number of Cores | Thickness of Conductor |
|---|---|---|---|
| 380℃ Heat Resistant Cable | 600V | 1 ~ 10 C 1 ~ 20 P |
1.2mm ~ 2.0 mm；1.25 ~ 8 mm2 |
| Shielded Cable with Heat Resistance up to 380℃ | 600V | 1 ~ 10 C 1 ~ 20 P |
1.2mm ~ 2.0 mm；1.25 ~ 8 mm2 |
| 840℃ Fire Resistant Cable | 600V | 1 ~ 30 C | 1.2mm ~ 2.6 mm；1.25~ 500mm2 |
| 950℃ Fire Resistant Cable | 600V | 1 ~ 30 C | 1.2mm ~ 2.6 mm；1.25~ 500mm2 |
Shanghai Plant:
| Product | Voltage | Number of Cores | Thickness of Conductor |
|---|---|---|---|
| NH-BV Fire Resistant Non-Sheathed Fixed Wiring Cable | 450/750V | 1 C | 1.5~400mm² |
| NH-BVR Fire Resistant Soft Cable | 450/750V | 1C | 2.5~185mm² |
| NH-RVS Fire Resistant Soft Cable | 300/300V | 2C | 0.5~6mm² |
| NH-BV Fire Resistant Non-Sheathed Fixed Wiring Cable | 300/500V | 1C | 0.75~1(7股絞合導體)mm² |
| NH-KVV Fire Resistant Control Cable | 450/750V | 2~61C | 0.75~10mm² |
| NH-YJV Fire Resistant Cable | 0.6/1kV | 1C 2C~5C |
1.5~630mm²；1.5~400mm² |
| NH-VV Fire Resistant Cable | 0.6/1kV | 1C 2C~5C |
1.5~630mm²；1.5~400mm² |
